Configuration Reference

Environment variables, .tinaa.yml per-repo configuration, and all settings available in TINAA MSP.

Configuration Reference

TINAA MSP is configured through two mechanisms:

  1. Environment variables — infrastructure-level settings (database URLs, API keys, ports)
  2. .tinaa.yml — per-repository product configuration (quality gates, environments, alerts, testing behaviour)

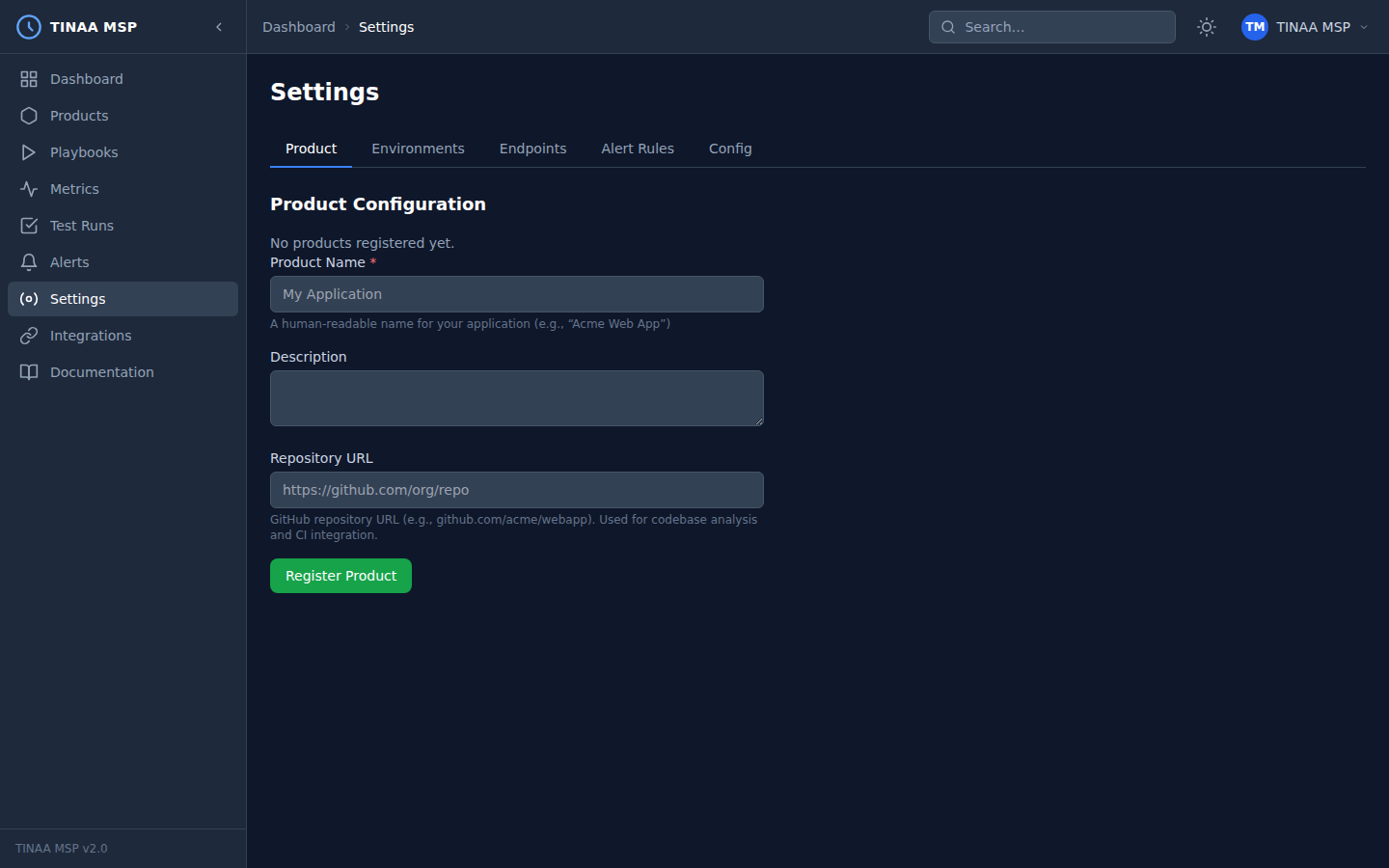

Settings page showing integration and system configuration options

Environment Variables

Set these in your .env file, Docker Compose environment block, or Kubernetes Secrets.

Core Application

Variable Required Default Description
TINAA_DATABASE_URL Yes — PostgreSQL connection string. Format: postgresql+asyncpg://user:pass@host:5432/db
TINAA_REDIS_URL Yes — Redis connection string. Format: redis://host:6379/0
TINAA_API_KEY Recommended — Master API key for authenticating REST API calls. Set TINAA_API_KEY_REQUIRED=false to disable auth (development only)
TINAA_API_KEY_REQUIRED No true Set false to disable API key authentication (never in production)
TINAA_MODE No api Server mode. api starts the REST API and dashboard. worker starts background job processors only. all starts both
TINAA_PORT No 8765 Port the HTTP server listens on
TINAA_HOST No 0.0.0.0 Interface to bind. Use 127.0.0.1 to restrict to localhost
TINAA_CORS_ORIGINS No * Comma-separated list of allowed CORS origins. In production, set this to your dashboard domain
TINAA_LOG_LEVEL No INFO Logging verbosity: DEBUG, INFO, WARNING, ERROR

GitHub Integration

Variable Required Default Description
TINAA_GITHUB_APP_ID No — GitHub App ID (numeric string). Required for GitHub App authentication
TINAA_GITHUB_PRIVATE_KEY No — Contents of the GitHub App private key PEM file. Include newlines
TINAA_GITHUB_WEBHOOK_SECRET No — Secret used to verify incoming GitHub webhook signatures (X-Hub-Signature-256)
TINAA_GITHUB_PAT No — Personal Access Token for PAT-based authentication (alternative to GitHub App)

Email / SMTP Alerts

Variable Required Default Description
TINAA_SMTP_HOST No — SMTP server hostname
TINAA_SMTP_PORT No 587 SMTP port (587 for STARTTLS, 465 for SSL)
TINAA_SMTP_USERNAME No — SMTP authentication username
TINAA_SMTP_PASSWORD No — SMTP authentication password
TINAA_SMTP_USE_TLS No true Enable STARTTLS for SMTP connections
TINAA_ALERT_EMAIL_FROM No — From address for alert emails
TINAA_ALERT_EMAIL_TO No — Comma-separated list of recipient addresses

PagerDuty Alerts

Variable Required Default Description
TINAA_PAGERDUTY_INTEGRATION_KEY No — PagerDuty Events API v2 integration key

Playwright / Browser

Variable Required Default Description
TINAA_PLAYWRIGHT_BROWSER No chromium Default browser for playbook runs: chromium, firefox, webkit
TINAA_PLAYWRIGHT_HEADLESS No true Run browser in headless mode. Set false for local debugging
TINAA_PLAYWRIGHT_TIMEOUT_MS No 30000 Default step timeout in milliseconds

Example .env File

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27

# Database
TINAA_DATABASE_URL=postgresql+asyncpg://tinaa:tinaa@localhost:5432/tinaa
TINAA_REDIS_URL=redis://localhost:6379/0

# API Security
TINAA_API_KEY=change-me-before-production
TINAA_API_KEY_REQUIRED=true
TINAA_CORS_ORIGINS=https://app.mycompany.com,https://tinaa.mycompany.com

# GitHub App
TINAA_GITHUB_APP_ID=123456
TINAA_GITHUB_PRIVATE_KEY="-----BEGIN RSA PRIVATE KEY-----
MIIEowIBAAK...
-----END RSA PRIVATE KEY-----"
TINAA_GITHUB_WEBHOOK_SECRET=a-long-random-secret

# Email alerts
TINAA_SMTP_HOST=smtp.sendgrid.net
TINAA_SMTP_PORT=587
TINAA_SMTP_USERNAME=apikey
TINAA_SMTP_PASSWORD=SG.xxxxxxxx
TINAA_ALERT_EMAIL_FROM=tinaa-alerts@mycompany.com
TINAA_ALERT_EMAIL_TO=oncall@mycompany.com,qa-team@mycompany.com

# Logging
TINAA_LOG_LEVEL=INFO
TINAA_MODE=api

.tinaa.yml — Per-Repository Configuration

Place a .tinaa.yml file in the root of any repository that TINAA monitors. TINAA reads this file during codebase exploration and uses it to configure quality gates, environments, alerts, and testing behaviour specific to that product.

Complete Annotated Example

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190

# .tinaa.yml
# ---------------------------------------------------------------
# Product identity
# ---------------------------------------------------------------
product_name: "Checkout Service"
team: "payments-team"
description: "Cart, payment processing, and order confirmation"
tags:
  - payments
  - customer-facing
  - critical

# ---------------------------------------------------------------
# Paths to exclude from codebase analysis and test generation
# ---------------------------------------------------------------
ignore_paths:
  - "tests/**"
  - "docs/**"
  - "scripts/**"
  - "**/__pycache__/**"

# ---------------------------------------------------------------
# Environments — maps to TINAA product environments
# ---------------------------------------------------------------
environments:
  - name: production
    url: "https://checkout.myapp.com"
    env_type: production
    monitoring:
      interval: "5m"           # how often to run synthetic checks
      endpoints:
        - path: "/"
          method: GET
          endpoint_type: page
          performance_budget_ms: 1000
          lcp_budget_ms: 2500
          cls_budget: 0.1
          expected_status: 200
        - path: "/checkout"
          method: GET
          endpoint_type: page
          performance_budget_ms: 1500
          lcp_budget_ms: 2500
          expected_status: 200
        - path: "/api/cart"
          method: GET
          endpoint_type: api
          performance_budget_ms: 200
          expected_status: 200
        - path: "/health"
          method: GET
          endpoint_type: health
          performance_budget_ms: 50
          expected_status: 200

  - name: staging
    url: "https://checkout-staging.myapp.com"
    env_type: staging
    monitoring:
      interval: "15m"
      endpoints:
        - path: "/"
          endpoint_type: page
          performance_budget_ms: 1000
        - path: "/checkout"
          endpoint_type: page
          performance_budget_ms: 2000

# ---------------------------------------------------------------
# Quality gates — block deployments below threshold
# ---------------------------------------------------------------
quality_gates:
  # Gate applied to all environments unless overridden
  default:
    min_score: 75
    no_critical_failures: true
    max_performance_regression_percent: 20
    max_new_accessibility_violations: 0

  # Stricter gate for production deployments
  production:
    min_score: 85
    no_critical_failures: true
    max_performance_regression_percent: 10
    max_new_accessibility_violations: 0

  # Looser gate for staging (allows iterative development)
  staging:
    min_score: 65
    no_critical_failures: true
    max_performance_regression_percent: 30
    max_new_accessibility_violations: 5

# ---------------------------------------------------------------
# Testing behaviour
# ---------------------------------------------------------------
testing:
  # Cron schedule for nightly full-suite runs (UTC)
  schedule: "0 2 * * *"    # 2am UTC every day

  # Run smoke suite on every deployment
  on_deploy: true

  # Run smoke suite as a GitHub Check Run on every PR
  on_pr: true

  # Browsers for cross-browser testing (playbook runs always use chromium by default)
  browsers:
    - chromium
    - firefox

  # Viewports to test (playbooks run once per viewport unless overridden)
  viewports:
    - name: desktop
      width: 1440
      height: 900
    - name: mobile
      width: 375
      height: 812

  # Run playbooks in parallel (requires more resources)
  parallel: false

  # Retry failed steps N times before marking as failed
  retries: 1

  # Per-step timeout in milliseconds
  timeout_ms: 30000

# ---------------------------------------------------------------
# Alerts — notification channels and rules
# ---------------------------------------------------------------
alerts:
  channels:
    - type: slack
      config:
        webhook_url: "${SLACK_WEBHOOK_URL}"
        channel: "#checkout-alerts"

    - type: pagerduty
      config:
        routing_key: "${PAGERDUTY_KEY}"
        severity_threshold: critical   # only critical alerts create PagerDuty incidents

    - type: email
      config:
        to:
          - oncall@mycompany.com
        from: tinaa-alerts@mycompany.com

  rules:
    # Fire when quality score drops by 10+ points
    - condition: quality_score_drop
      threshold:
        drop_amount: 10
      severity: warning
      channels: [slack]
      cooldown_minutes: 60

    # Fire when quality score falls below 70
    - condition: quality_score_below
      threshold:
        min_score: 70
      severity: critical
      channels: [slack, pagerduty, email]
      cooldown_minutes: 30

    # Fire when an endpoint goes down (3 consecutive failures)
    - condition: endpoint_down
      threshold:
        consecutive_failures: 3
      severity: critical
      channels: [slack, pagerduty]
      cooldown_minutes: 10

    # Fire when P95 response time exceeds 2 seconds
    - condition: endpoint_degraded
      threshold:
        max_response_time_ms: 2000
      severity: warning
      channels: [slack]
      cooldown_minutes: 30

    # Fire if a test suite has any failures
    - condition: test_suite_failure
      threshold:
        max_failures: 0
      severity: warning
      channels: [slack]
      cooldown_minutes: 60

Configuration Reference by Section

product_name, team, description, tags

Metadata fields that appear in reports, GitHub issues, and alert messages. tags are free-form labels you can use to group or filter products.

ignore_paths

Glob patterns for paths that TINAA should skip during codebase exploration. Use this to exclude test files, generated code, and documentation from analysis.

environments

Defines the deployment environments TINAA monitors for this product. Each environment entry:

Field Type Description
name string Environment name — must be unique within the product
url string Base URL for this environment
env_type string One of production, staging, preview, development
monitoring.interval string Check frequency. Human-readable: 30s, 5m, 15m, 1h
monitoring.endpoints list Endpoints to monitor within this environment

Each endpoint in monitoring.endpoints:

Field Type Description
path string URL path, e.g. /checkout
method string HTTP method (default: GET)
endpoint_type string page, api, or health
performance_budget_ms integer Response time budget. Score degrades linearly to zero at 2×
lcp_budget_ms float LCP budget in milliseconds
cls_budget float CLS budget (unitless score)
expected_status integer Expected HTTP status code (default: 200)

quality_gates

Quality gate configurations keyed by environment name, with a default fallback. When a gate check is evaluated (on deployment or on PR), TINAA applies the gate matching the target environment. If no environment-specific gate exists, default is used.

Field Type Description
min_score float Minimum composite quality score (0–100) required to pass
no_critical_failures boolean Block if any critical test failures exist
max_performance_regression_percent float Block if performance degraded by more than N%
max_new_accessibility_violations integer Block if new WCAG violations were introduced

testing

Controls when and how playbooks run.

Field Type Description
schedule string Cron expression for scheduled full-suite runs (UTC)
on_deploy boolean Run smoke suite after every deployment
on_pr boolean Run smoke suite as a GitHub Check Run on every PR
browsers list Browsers to use: chromium, firefox, webkit
viewports list Browser viewport sizes. Each entry needs name, width, height
parallel boolean Run playbooks concurrently
retries integer Retry failed steps N times before marking the step as failed
timeout_ms integer Default timeout per step in milliseconds

alerts.channels

Notification channel definitions. Reference environment variables with ${VAR_NAME} syntax — TINAA resolves these at startup.

Channel type Required config keys
slack webhook_url, optionally channel
email to (list), from
webhook url, optionally headers (dict), secret
pagerduty routing_key, optionally severity_threshold

alerts.rules

Custom alert rules for this product. The condition field must be one of the supported AlertConditionType values (see Alerts documentation).

Configuration Loading Order

TINAA resolves configuration in the following priority order (highest to lowest):

  1. Environment variables (TINAA_*)
  2. .tinaa.yml in the product’s repository root
  3. Product settings in the TINAA database (set via UI or API)
  4. Built-in defaults

Next Steps
